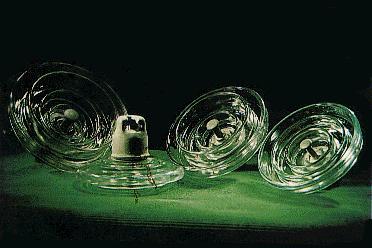

Glass Insulators:

Introduction:

China can supply Toughened Glass Insulators of cap and pin type for 35 KV to 500KV to IEC, BS, AS and ANSI standards as well as Chinese standard.

Main Specification:

The products consists of a cast-iron cap, toughened glass body and pin cemented together into an integrated piece.

Standard Type:

70KN, 80KN, 100KN, 120KN, 160KN, 210KN, 300KN

Anti-pollution Type:

70KN, 100KN, 120KN, 160KN, 210KN

Operation:

  1. Zero-spontaneous breakage and easy inspection;
  2. Excellent arc-resistance and vibration-proof performance.
  3. Good self-cleaning and less age;
  4. Large main electric capacitance.

Return To Top

Porcelain Suspension Insulators:

The porcelain disc suspension insulators are including standard type and anti-pollution type, with capacity from 40KN, 45KN, 60KN, 70KN, 80KN, 100KN, 110KN, 120KN, 125KN, 160KN, 190KN, 210KN, 300KN, 400KN up to 530KN, to meet IEC, ANSI, BS, AS standards.

Return to Top

Line Post & Pin Post Insulators:

1. Line Post Insulators:

Available specification:

ANSI 57-1S,L,; 57-2S,L,; 57-3S,L,; 57-4S,L,;57-5S,L

Color: Brown Glaze or Light Gray Glaze

2. Pin Post Insulators:

Specification and test in accordance with IEC publication 383.

Nominal Diameter D: 170 mm

Nominal Spacing H: 336 mm

Nominal Creepage Distance: 534 mm

Min. Protected Creepage Distance: 267 mm

Mechanical Failing Load: 12.5 KN

Wet Power-frequency Withstand Voltage: 65 KV

Dry Lightning Impulse Withstand Voltage: 150 KV

Return to Top

Pin Type Insulators:

Available with Standard Type and Anti-Pollution Type to meet ANSI, BS, AS, GB, DIN etc. standards.

Return to Top

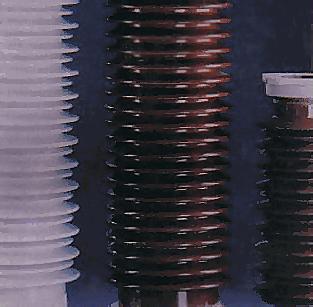

Station Post Insulators:

Available with different kind to meet IEC standards.

Also available with different kinds of station use bushing.

Return to Top

Contact Us:

If you are interested in any China insulators, please kindly contact MR. LIAO KUO. Now I am working as the Electrical Department Manager of

Henan Machinery & Electric Import & Export Co.,Ltd.

No. 16-1 Jinshui Avenue, Zhengzhou, 450003 China.

 Tel: +86-371-5911022,5911023 Fax: +86-371-5911028

E-mail: liaokuo@public2.zz.ha.cn
